Electrical Bus Duct Expansion Joints

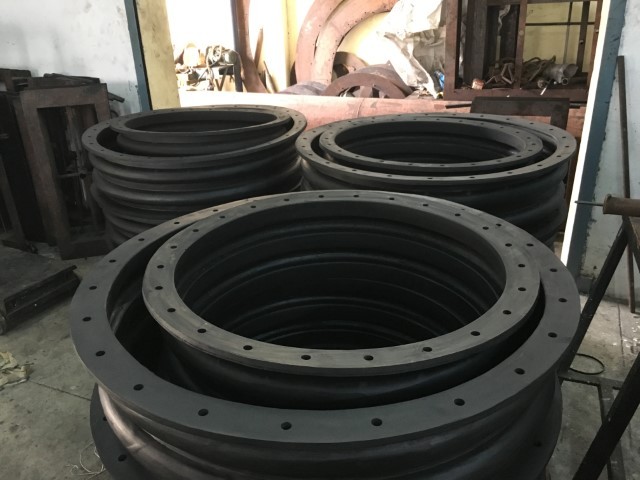

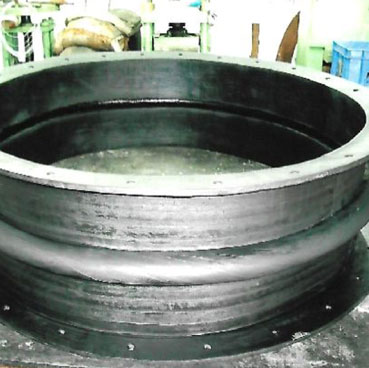

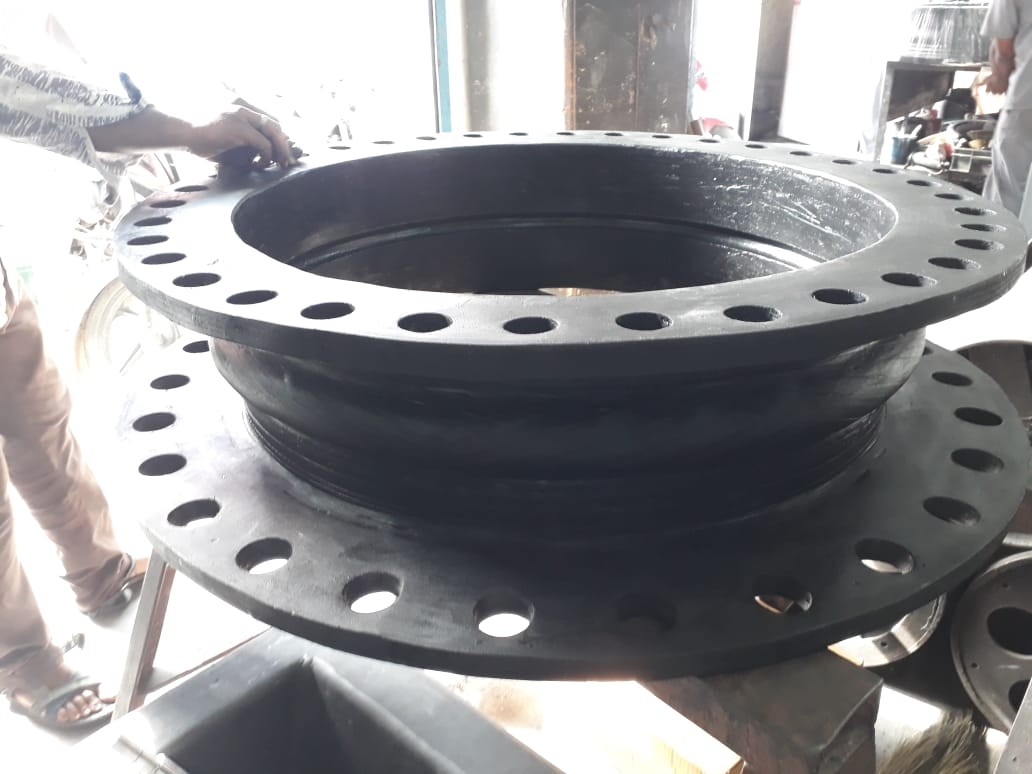

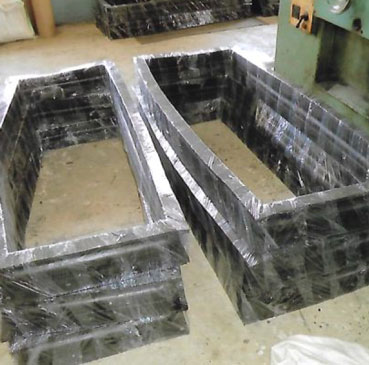

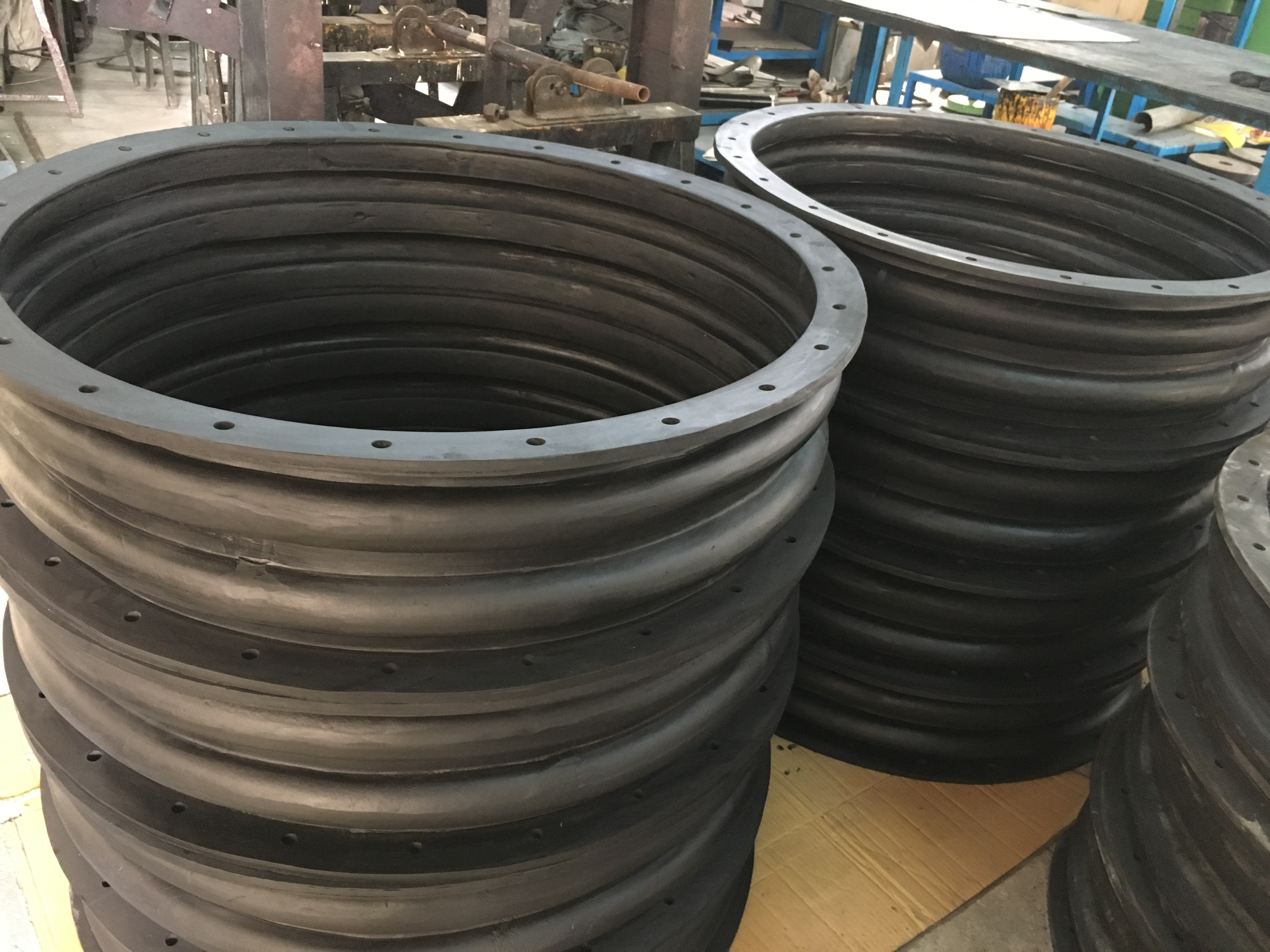

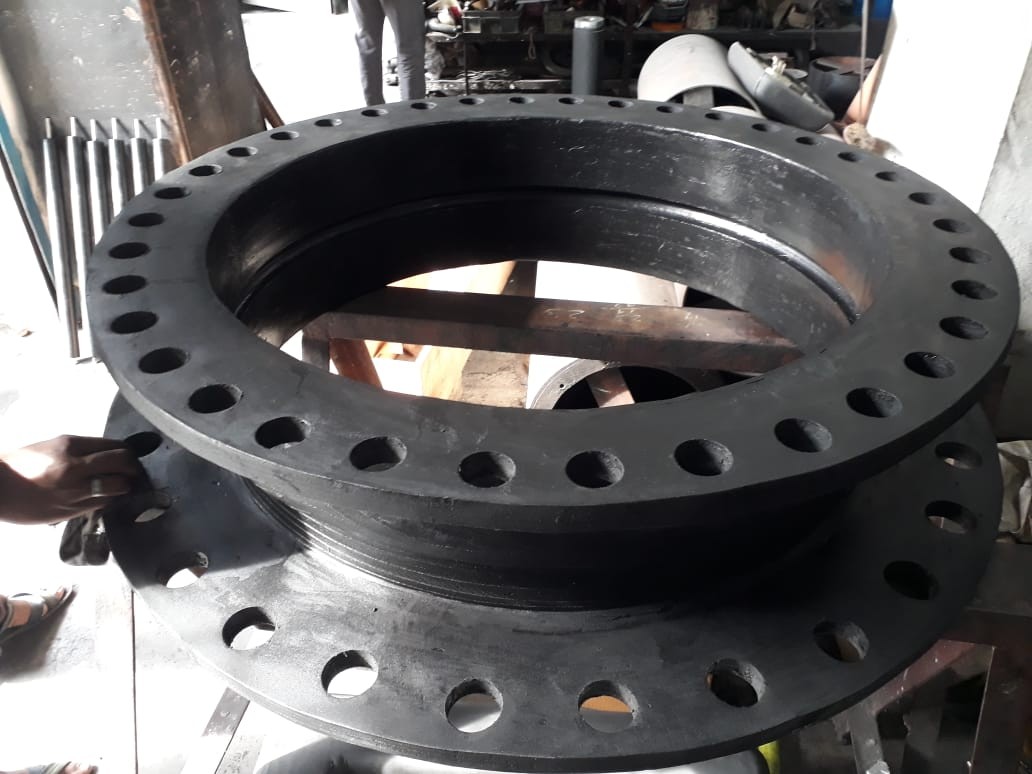

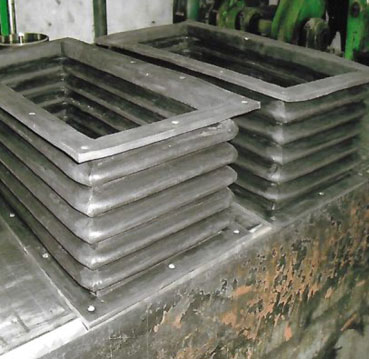

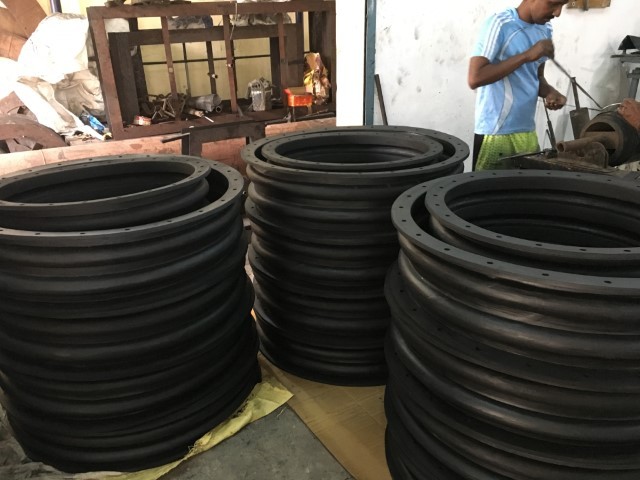

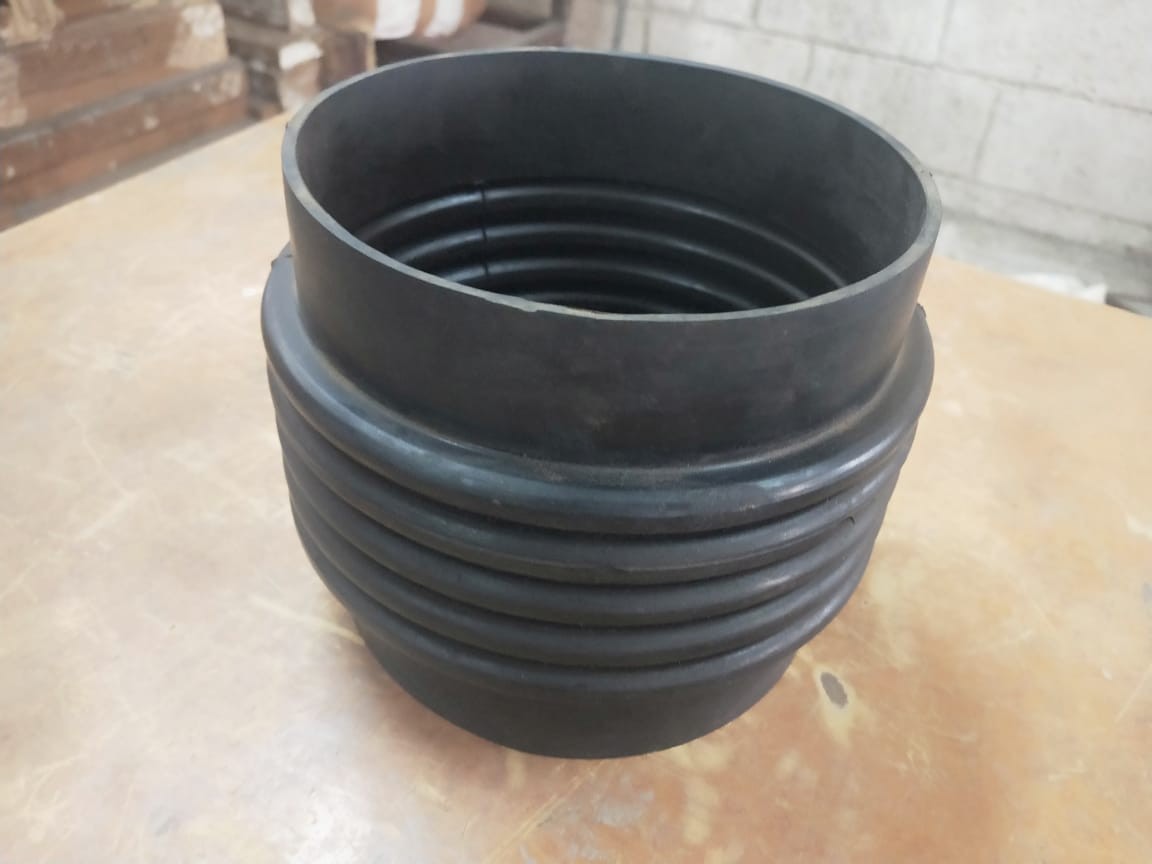

Electrical Bus, duct expansion joints are designed to handle hot air or gases in industrial duct work, as well as those generated by power plant and pollution control equipment. They are custom constructed of rubber and fabric to absorb thermal movements and vibration in duct work and to aid in the elimination of noises caused by scrubber equipment and mechanical dust collectors. Installation is easy and connectors and expansion joints are available in many materials and configurations.

PLEASE SPECIFY THE FOLLOWING REQUIREMENTS:

  • Round, rectangular, oval, offset
  • Diameter(s)
  • Installed face-to-face
  • Type of medium
  • Operating and design temperature
  • Operating and design pressure
  • Axial compression
  • Axial elongation
  • Lateral deflection
  • Flange detail (bolt circle, number of holes, diameter)
  • Standard wall thickness
  • Type and thickness of retaining rings.

AVAILABLE IN WIDE CHOICE OF METALS

  • NEOPRENE - Resistant to heat, adverse weather conditions, ozone and flue gases. Impervious to fats, oils, greases and other petroleum products. Recommended for use up to 230ºF.
  • CHLOROBUTYL - An elastomer with all of the above advantages of neoprene with the exception of its inability to withstand ail. Designed for 270ºF environments.
  • EPDM - Resistant to heat, adverse weather conditions, ozone and flue gases. Impervious to fats, oils, greases and other petroleum products. Recommended for use up to 240ºF.
  • VITON - In addition to providing all of the properties of neoprene Viton® is highly resistant to mineral acids and useable in 380ºF applications
